In GCSE Physics, one of the most important ideas is the conservation of energy. This principle helps us understand how energy moves, changes form, and powers everything around us.
One of the most important ideas in physics is the law of conservation of energy. It tells us that energy can’t be created or destroyed – it can only change form. This means the total amount of energy in a closed system always stays the same, even if it looks like some has been lost.
In this guide, you’ll learn exactly what conservation of energy means, how it works in real life, and how to use this concept in your GCSE Physics questions. We’ll also go through energy stores, transfers, Sankey diagrams, and how to calculate energy changes step by step. Let’s make this topic simple, clear, and easy to remember.
What Is the Law of Conservation of Energy?
The law of conservation of energy is one of the most important rules in physics. It states that energy cannot be created or destroyed, only transferred or transformed from one store to another. This means the total amount of energy in a closed system always stays the same.
In a closed system, no energy enters or leaves, it just moves around between different forms. For example, imagine a swinging pendulum. At its highest point, it has gravitational potential energy. As it swings down, that energy is transferred into kinetic energy. None of it disappears, it just changes form.
Another example is a bouncing ball. When the ball hits the ground, its kinetic energy turns into elastic potential energy and thermal energy. As it bounces back up, some of that energy turns back into kinetic. Even though it doesn’t bounce as high each time (because some energy is lost to the surroundings as heat), the energy isn’t gone, it’s just been transferred somewhere else.

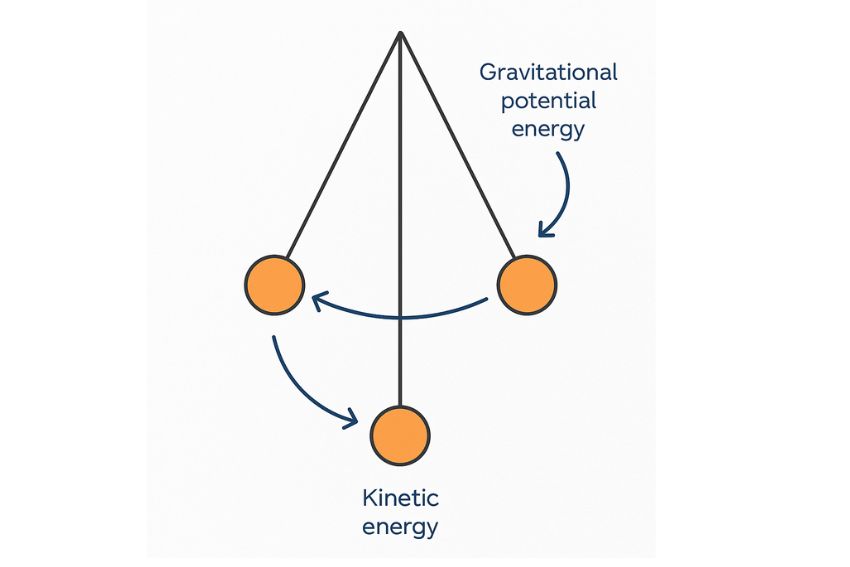

This diagram shows how energy shifts between gravitational potential and kinetic energy as a pendulum swings:
Energy Stores and Transfers – GCSE Physics
To fully understand the conservation of energy, it’s important to know how energy moves between different energy stores. When something changes in a system, like a car speeding up or water boiling, energy isn’t lost or made from nothing. Instead, it’s transferred from one store to another. For example, electrical energy in a kettle becomes thermal energy in the water, and when you throw a ball, kinetic energy becomes gravitational potential energy as it rises. These changes show that energy is always conserved. It might shift form, but the total amount stays the same. That’s the principle at the heart of this topic: energy can move, but it never disappears.
Closed Systems and Energy Dissipation
In physics, a closed system is one where no energy can enter or leave, it just moves around within the system. This is useful when studying the conservation of energy, because it helps us clearly see how energy is transferred and transformed without anything being added or taken away.
However, just because the total energy stays the same doesn’t mean it always stays useful. This is where energy dissipation comes in. When energy is transferred, some of it often spreads out, usually as thermal energy and becomes less useful. This energy isn’t lost, but it can no longer do work as efficiently.

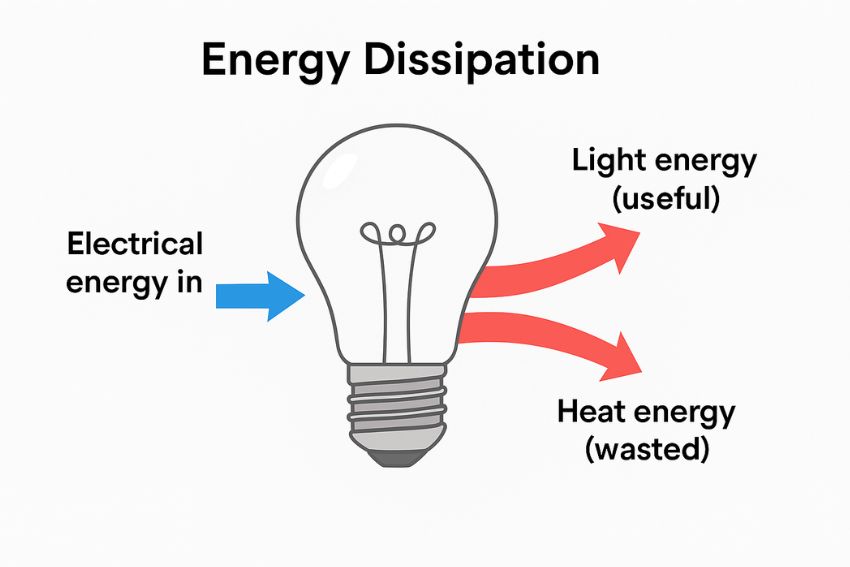

Think about a car engine. It transforms chemical energy in fuel into kinetic energy to move the car, but some energy is also transferred into the surroundings as heat and sound. Or take a light bulb, it transfers electrical energy into light, but a large portion is also released as heat.
GCSE Physics – Useful vs. Wasted Energy
When energy is transferred in a system, not all of it goes where we want it to. Some of it is used to do the job, that’s the useful energy. The rest is usually transferred to the surroundings, often as heat or sound, and we call that wasted energy.
Take a toaster for example. It transforms electrical energy into thermal energy to cook your bread, that’s useful. But it also gives off heat into the air around it, that’s wasted. Or think about a television. It uses electrical energy to produce light and sound, but some energy is lost as heat from the screen or the power supply.
This is where efficiency comes in. Efficiency is a measure of how much of the input energy is converted into useful output. The more efficient a device is, the less energy it wastes. That’s why energy-efficient appliances are designed to reduce wasted energy and help conserve resources.
Understanding the difference between useful and wasted energy helps you see why energy conservation matters – it’s not just about how much energy we use, but how well we use it.
Conservation of Energy – Energy Flow Diagrams
Now that you understand what happens to energy in a system, it’s helpful to know how we can represent those transfers clearly. That’s where energy flow diagrams come in. These diagrams show how energy enters a system, what it’s used for, and where the rest ends up.
Each arrow in the diagram represents a different output. The direction and size of the arrows help you see how energy is split. For example, how much is transferred to a useful store and how much is transferred to the surroundings.

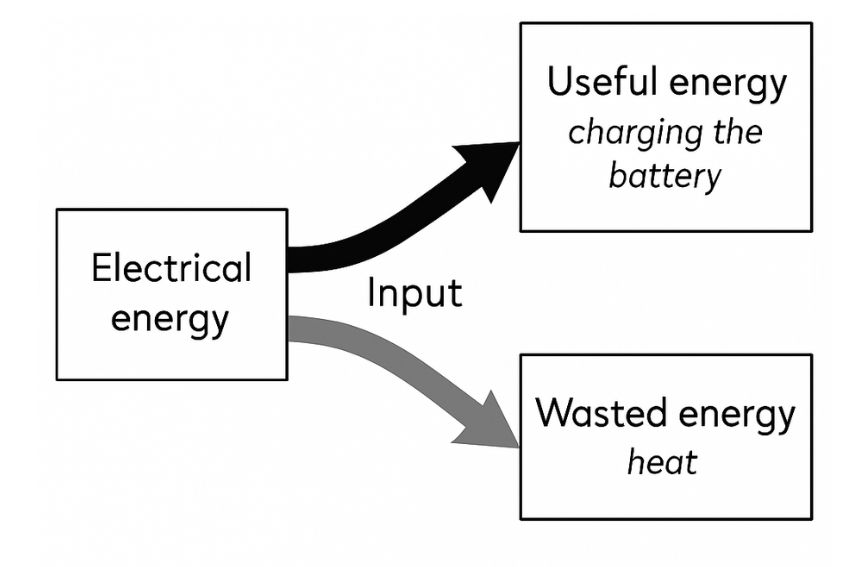

Let’s look at a simple example: a mobile phone charger. Electrical energy goes in. Some is transferred usefully to charge the battery, while some is released as heat. This can all be shown clearly using arrows in an energy flow diagram.
Knowing how to read these diagrams makes it easier to see how energy is used in real systems and how it follows the law of conservation of energy.
What Is Sankey Diagrams?
A Sankey diagram is a special type of energy diagram that shows how much energy is transferred in a system and how much of it is useful or wasted. It’s a really useful tool for showing energy efficiency at a glance. The arrows in a Sankey diagram tell you two things:
Direction – where the energy is going.
Size – how much energy is being transferred (the wider the arrow, the more energy).
The input energy is shown on the left. The useful energy goes straight across, and the wasted energy goes off to the side, usually downward. This makes it easy to see how efficient a device is: the more energy in the forward arrow, the better.
Let’s compare two light bulbs:
- A traditional bulb takes in 100 J of electrical energy. It uses 10 J as light and wastes 90 J as heat.
- An energy-saving bulb also takes in 100 J, but it uses 60 J as light and wastes only 40 J.
With a Sankey diagram, you can clearly see which one is more efficient just by looking at the size of the arrows.
GCSE Physics Exam Tips and Common Misconceptions
Understanding the conservation of energy is one thing, but applying it in exams is another. Here are a few simple tips to help you with these questions:
Exam Tips
- Read the question carefully: Look for key words like closed system, efficiency, or energy transfer. They often guide what you’re expected to explain.
- Use diagrams when asked: Energy flow diagrams or Sankey diagrams are a great way to show how energy moves or is lost in a system.
- Always mention conservation: If a question asks what happens to energy, state clearly that the total energy is conserved, it just changes form.
- Show your working in calculations: Especially for efficiency or energy transfer questions. Use the correct units: joules (J), watts (W), or percentage (%).
Common Misconceptions
- 1. Forgetting wasted energy in diagrams. Don’t only show the useful output, remember that energy is always split in real-world systems.
- 2. Thinking energy is lost. It’s not. It’s just transferred to less useful stores like heat, this is called dissipation, not disappearance.
- 3. Mixing up energy transfer and energy transformation. Transfer means moving between places or objects. Transformation means changing from one form to another.
Useful Websites for GCSE Physics Students
If you’re studying GCSE Physics and want a little extra help, these websites offer free resources, quizzes, videos, and more to support your learning:
- BBC Bitesize – A go to for GCSE revision. Covers every Physics topic with clear explanations, animations, and short quizzes.
- Isaac Physics – Designed to challenge and stretch students. Best for practising solving problems with clear hints and feedback.
- GCSEPod – Short, focused revision videos for students with school access. Great for visual learners.
These sites can help you review tough topics, practise applying your knowledge, and prepare for exams in a way that’s engaging and effective.
Conclusion
The conservation of energy is a key idea in GCSE Physics. From energy stores and transfers to efficiency, energy flow diagrams, and Sankey diagrams, understanding how energy moves helps you make sense of the world around you.
Remember, energy isn’t lost – it’s just transferred or transformed. Whether you’re looking at a kettle, a car engine, or a light bulb, this principle stays the same. And once you learn how to spot it, it becomes much easier to answer questions clearly and confidently.
So, if you ever feel stuck or want to deepen your understanding, online tutoring in GCSE Physics can make a big difference. A tutor can explain difficult concepts and help you build revision strategies that work for you.
